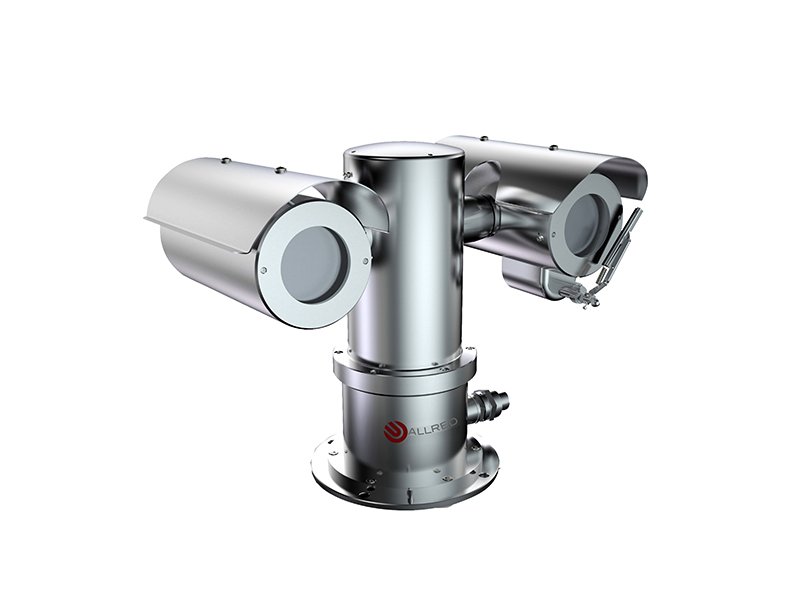

PTZ Laser Methane Monitoring System

The AFD1000 PTZ methane leak detector system is suitable for various types of natural gas stations. It conducts 24-hour uninterrupted scanning and detection of various facilities in the stations, increases the safety monitoring of the stations, and improves the level of safety management. Each system is equipped with a laser methane detector and a video camera to obtain real-time images and comprehensive data on natural gas concentration.

Features

1. Detection distance up to 200 meters

2. No limit to the number of preset points

3. Simultaneous login of multiple computers in the LAN

4. Starlight Infrared Night Vision System

5. Real time calibration for positioning

6. Multi-point scanning at the alarm location

Parameters

Model	AFD1000
Measurement Range	0ppm·m ~100000 ppm·m
Sensitivity	2.5 ppm·m
Response Time	0.05s
Detection Distance	200m
Detector Laser	Class I
Spotter Laser	Class III R
Ingress Protection	IP68
Explosion Proof Classification	Exib II A T6 Gb
Operating Temperature	-40℃ ~ 60℃
Size	502mmⅹ292mmⅹ443mm
Power Supply	220VAC
Instrument Weight	30kg
Camera	300w pixels, 30x zoom
Motion Range	Horizontal 360° Vertical +/—90°
