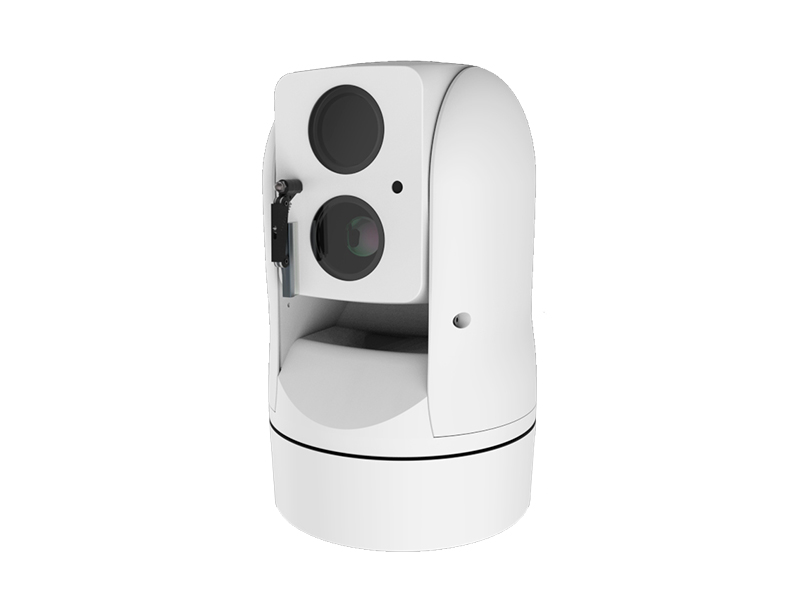

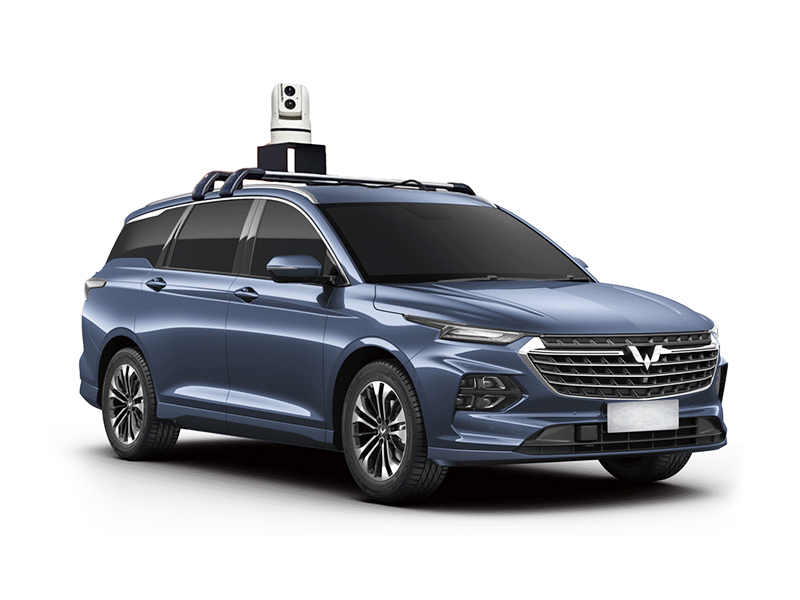

Vehicle-mounted Laser Methane Leak Detector

Detection Principle

TDLAS

Gas

Methane

Sensitivity

5 ppm·m

Detector Laser

Class 1

Response Time

0.05 s

Spotter Laser

Class 3R

Measurement Range

0-100000 ppm·m

IP Rating

IP68

Detection Distance

150 m

Operating Temperature

-40℃~70℃

Visual Terminal

Tablet

Operating Temperature

5~100% RH, non-condensing

Alarm

Audible and visual

Movement Range

Pan 360°
Tilt+90°~-45°

Software

Security Inspection Assistant

Screen Pixel

2 million

Data Interface

Wifi

Power

20 W

Supply Voltage

DC12 V

Display Method

Numerical Display

Weight

7 kg

Dimension

200*200*315 mm
