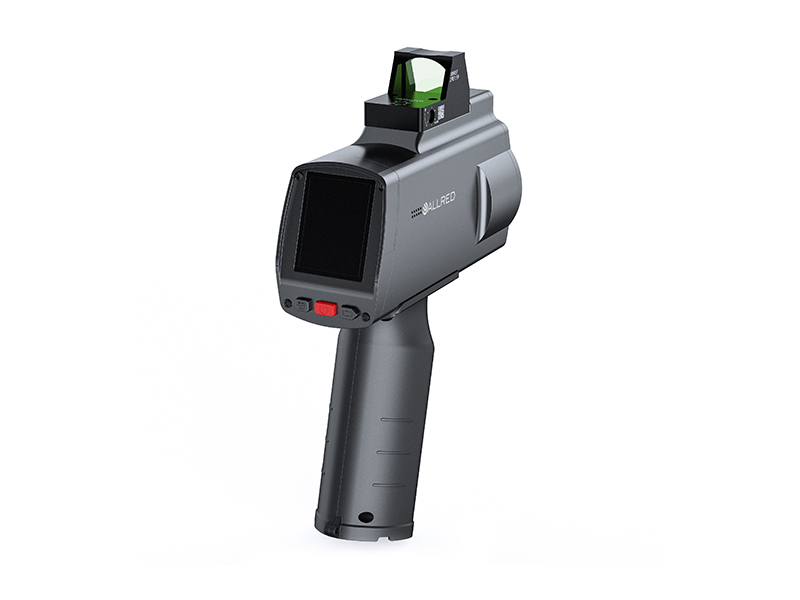

Remote Methane Leak Detector

The ARD4100 has optimized and upgraded its performance, appearance, and weight while ensuring economy, making it reliable, durable, safe, and stable.

Features

1. With a detection distance of 120 meters, it is easy to handle various industrial gas leakage detection tasks.

2. Response speed is 0.05s, which greatly improves the inspection efficiency.

3. 5ppm·m sensitivity, so that tiny leaks can be detected.

4. Weight 0.55kg, it is light and easy to carry, and is convenient for inspection personnel to operate.

5. Metal shell, ingress protection is IP68.

6. The product is equipped with an optical sight, the sight is powered by the host of the device, no need to replace the battery, and the detection point can be accurately found under the sun.

7. Two rechargeable lithium batteries.

Parameters

Model	ARD4100
Measurement Range	0ppm·m ~100000 ppm·m
Sensitivity	5 ppm·m
Response Time	0.05s
Detection Distance	120m
Detector Laser	Class I
Spotter Laser	Class III R
Aiming Method	Green spotter laser and sight (internal power supply, no need to replace the battery)
Ingress Protection	IP68
Explosion Proof Classification	Exib II A T4 Gb
Operating Temperature	-20℃ ~ 50℃
Battery Operating Life	12 hours
Power	2 Replaceable Lithium Battery
Size	198mmⅹ131mmⅹ58mm
Instrument Weight	0.55kg
Display Screen	1.8-inch high brightness LCD
Inspection Software	IOS and Android, PC client end
